Agent G2 Tank Monitoring Kit



Overview

Pervasive Telemetry presents an elegant wireless solution for Monitoring and Control. AgentG2 is a remote monitoring and control service which provides continuous, realtime monitoring and control of your remote assets and infrastructure on a web browser or web capable mobile phone.

We provide a single supplier, end-to-end solution. We design and build the hardware, software and provide the services. No more integration hassles or “passing the buck”

  • Connections for 4..20ma, SDI-12 and 1-Wire sensors, as well as voltage and digital inputs
  • Monitor and log any inputs
  • Digital (FET) outputs to drive motors and relays
  • Programmable for local processing and control
  • Information is continuously transmitted to Pervasive Telemetry servers where it is securely stored
  • Immediate notification of out of range situations, security breaches and equipment failures
  • Alarms are delivered locally through visual indications as well as remotely using SMS and Email
  • Detailed visual reporting and data export to make the fulfillment of your regulatory and compliance obligations easy

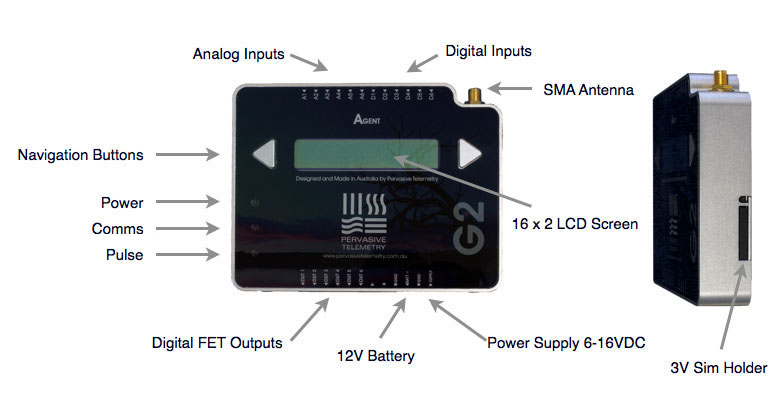

Specifications


Interfaces

Analog

  • 6 Channels
  • Software Selectable 0-5V, 4-20mA, 0-20mA
  • 12-Bit sampling resolution

Digital Inputs

  • 6 Channels (3 Channels with frequency, pulse and counter capture)

Digital Outputs

  • 6 Channels open drain protected FET switches

1-Wire

  • Support for DS1825 6 x Temperature Sensors
  • Support for DS2450 Quad 16-bit A/D Converters

SDI-12

  • Support for reading up to 16 registers from SDI-12 devices

Sim Card

  • 3V Removable Tray



Antenna

  • SMA Female Connector

Battery

  • 12V Lead Acid Battery Connection
  • Battery Charger (When Supply > 15V)

Power Supply

  • 6 -32 Vdc (Recommended) @1.5 Amps

Screen

  • 16 x 2 Character LCD
  • LED Backlight

Buttons

  • 2 Navigation Buttons

GSM

  • Quad band: 850/900/1800/1900 MHz
  • GPRS/EDGE/2G/WCDMA/3G/HSxPA

Mechanical

Housing

  • 6061 Aluminum Machined Clear Anodised

Mounting

  • 4 x Neodymium Magnets + High Friction Feet

Size and Weight

Width:
117mm (4.61 inch)
Height:
93mm (3.66 inch)
Depth:
20mm (0.79 inch)
Weight:
225g (7.94 ounce)



Environment

Temperature and Humidity

Operational:
-10°C to 55°C (14°F to 131°F)
Non Operational:
-20°C to 65°C (-4°F to 149°F)
Rel Humidity:
5% to 95% non condensing
Protection:
IP40
